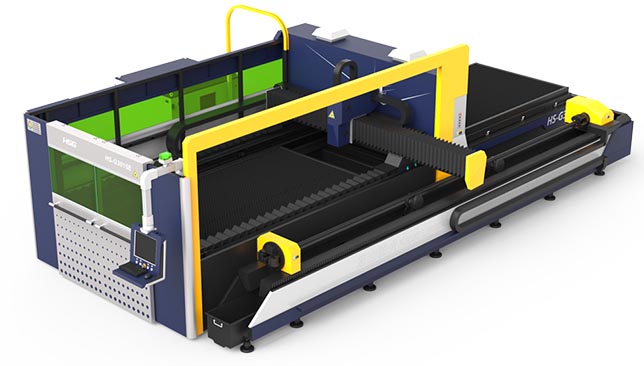

Professionally cutting square pipes, round pipes, rectangle pipes, D-shaped pipes and hexagon pipes etc. Cutting capacity- square pipes: 20X20-150X150mm, round pipes: Φ20-Φ219mm, thickness 0.5-5mm carbon steel pipes, 0.5-5mm stainless steel pipes.
Professionally cutting 0.5-20mm carbon steel, 0.5-10mm stainless steel, 0.5-8mm brass, 0.5-10mm aluminum, 0.5-4mm copper, as well as galvanized steel, electrolytic steel and silicon steel etc (thicknesses are related to the kinds of materials and fiber source power)

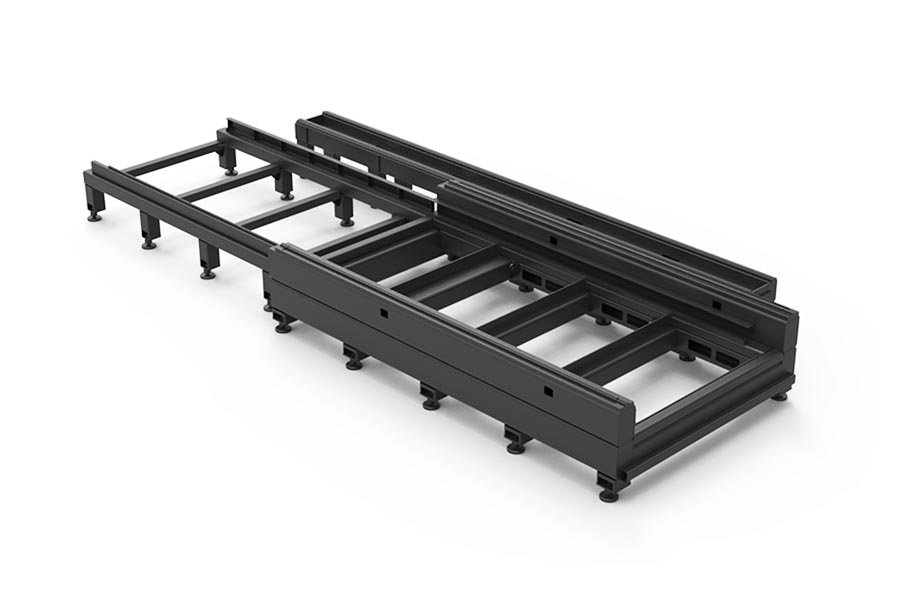

Welded and stress-relieved steel frame houses the machine and pallet shuttle. Dual servo drive on the X-axis permits high acceleration and speed.
        | Processing Area: | 3000mmX1500mm (optional) |
| Laser power: | 500W-3000W |
| Max. moving speed: | 60m/min |
| Max. acc. speed: | 0.5G |
| Positioning Accuracy: | 0.05mm/m |
| Reposition Accuracy: | ±0.05mm |
| Whole machine weight: | 8500kg |
| Machine dimensions: | 8500X3650X2100mm;4450X900X1050mm |
