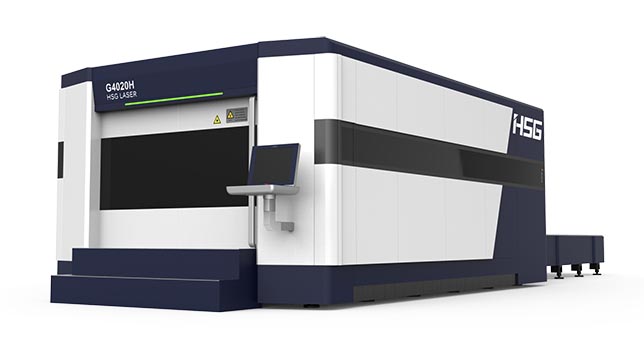

HS-G4020H

Sheet Metal Cutting Fiber Lasers

Specially used for cutting 0.5-25mm carbon steel, 0.5-30mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel, 0.5-30mm aluminum, 0.5-15mm brass and red copper and other kinds of metal sheets(The thickness and materials depend on different fiber laser source).

HS-G4020H

Features

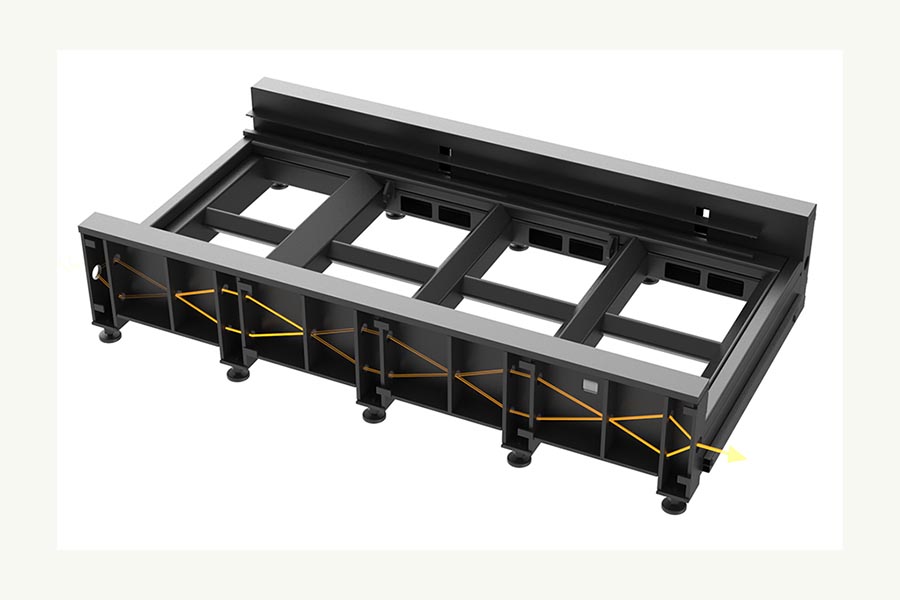

Precision Machined Frame Provides Solid Core

Welded and stress-relieved steel frame houses the machine and pallet shuttle. Dual servo drive on the X-axis permits high acceleration and speed.

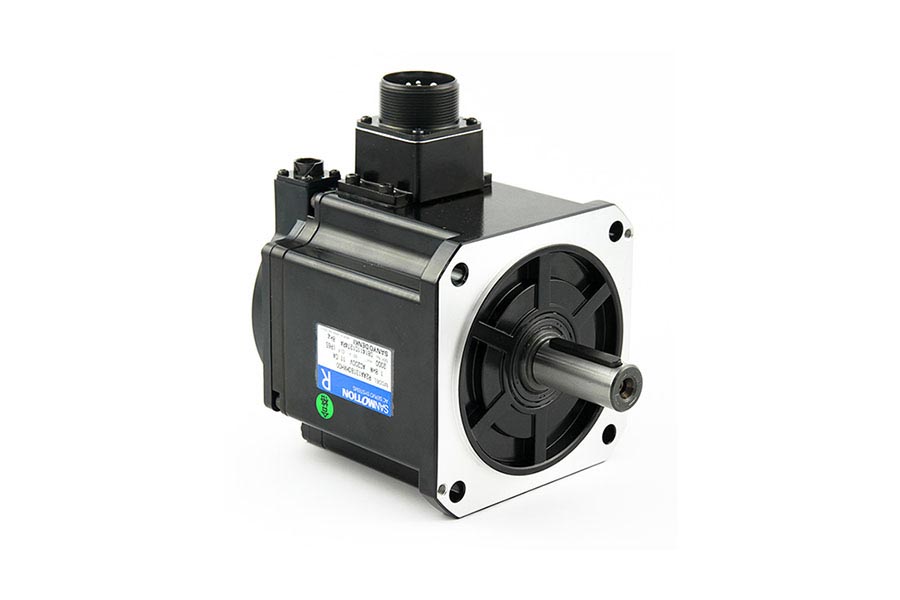

Sanyo Denki Servo Motor

All axes driven with Japanese Sanyo Denki AC servo drives.

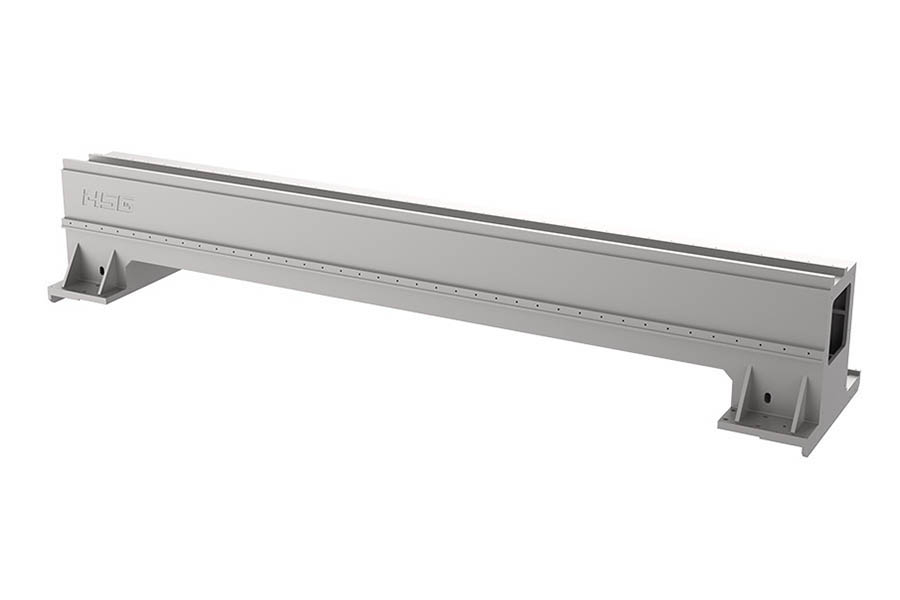

Cast Aluminum Gantry

50% lighter than traditional steel weldments permitting higher rates of acceleration and overall speed.

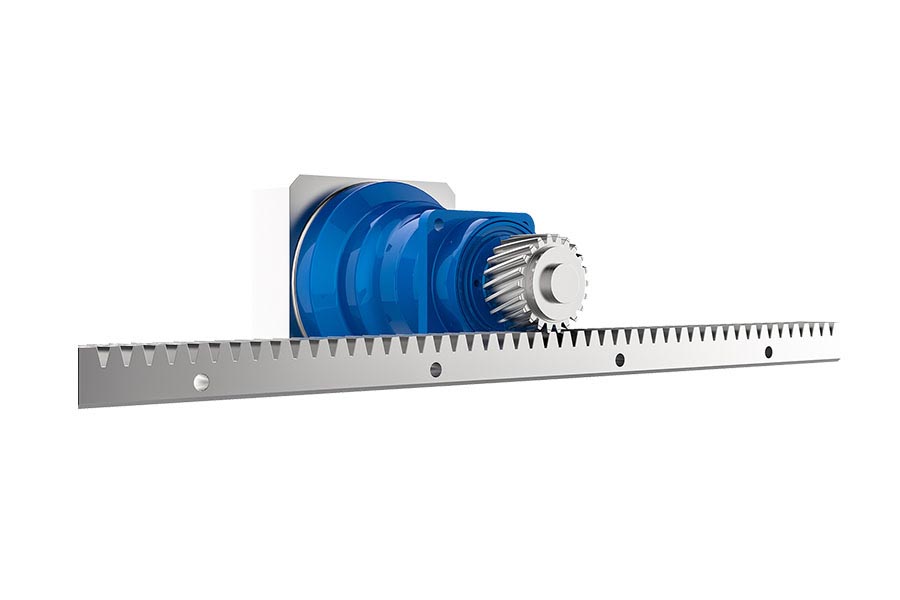

High-precision Rack And Pinion Drives

HSG Laser adopts world-renowned Alpha Wittenstein racks and gear reducers, the same product used in Trumpf machines.

HS-G4020H

Configuration

MAX. ACCELERATION SPEED 2.0G
MAX. MOVING SPEED 183M/MIN

HS-G4020H

Technical Parameters

Processing Area:	4000*2000mm
Complex-axis:	183m/min
Max. acc. speed:	2.0G
Positioning Accuracy:	0.05mm/m
Reposition Accuracy:	±0.05mm
Laser power:	1000w-10000w
Whole machine weight:	18000kg
Machine dimensions:	11500X3500X2500mm
