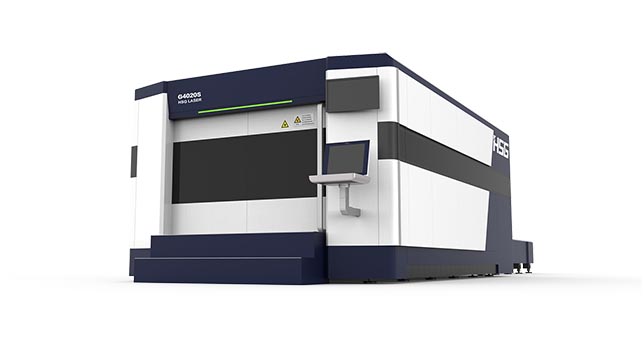

GS-Series HS-G4020S Sheet Metal Cutting Fiber Lasers

HS-G4020S

Sheet Metal Cutting Fiber Lasers

Specially used for cutting 0.5-25mm carbon steel, 0.5-30mm stainless steel, 0.5-30mm aluminum, 0.5-15mm brass, 0.5-12mm copper, as well as galvanized steel, electrolytic steel and silicon steel etc (thicknesses are related to the kinds of materials and fiber source power).

HS-G4020S

Features

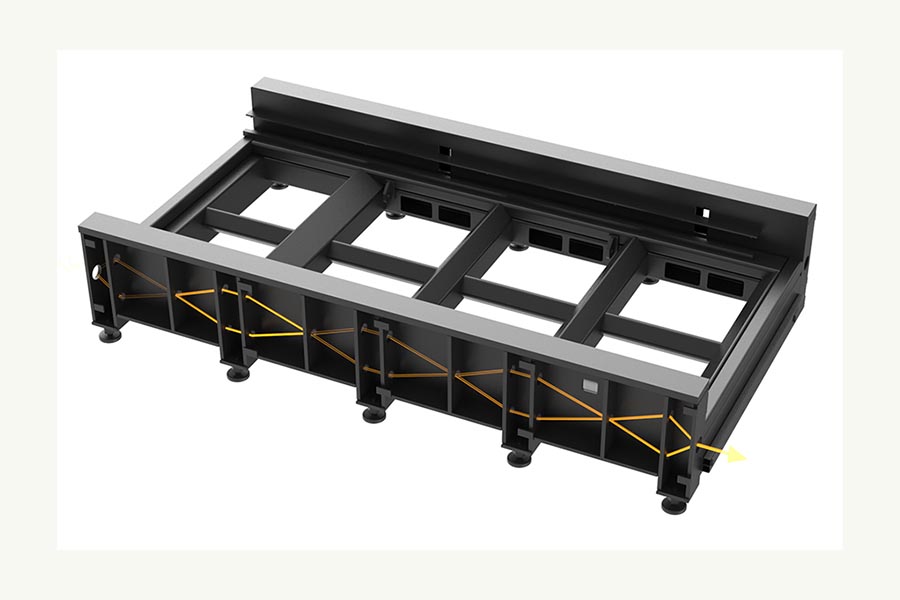

carbon structural steel plate welding
Carbon Structural Steel Plate Welding

Made of carbon structural steel plate welding, dislocation nest box construction to avoid welding stress deformation, 600℃ high temperature release annealing stress with 20 years of normal use without distortion.

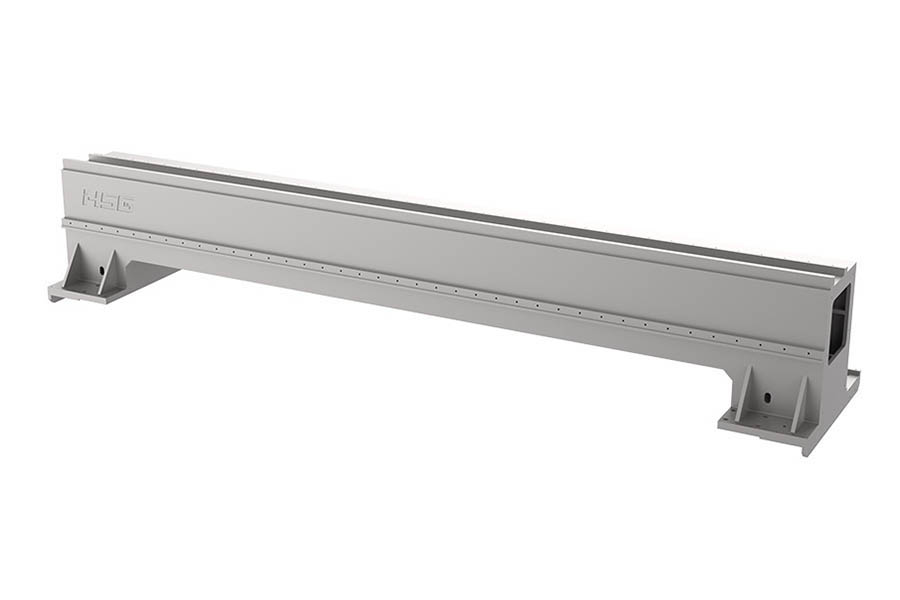

CAST ALUMINUM gantry 50% LIGHTER THAN MADE BY STEEL
Cast Aluminum Gantry 50% Lighter Than Made By Steel

50% lighter than traditional steel weldments permitting higher rates of acceleration and overall speed.

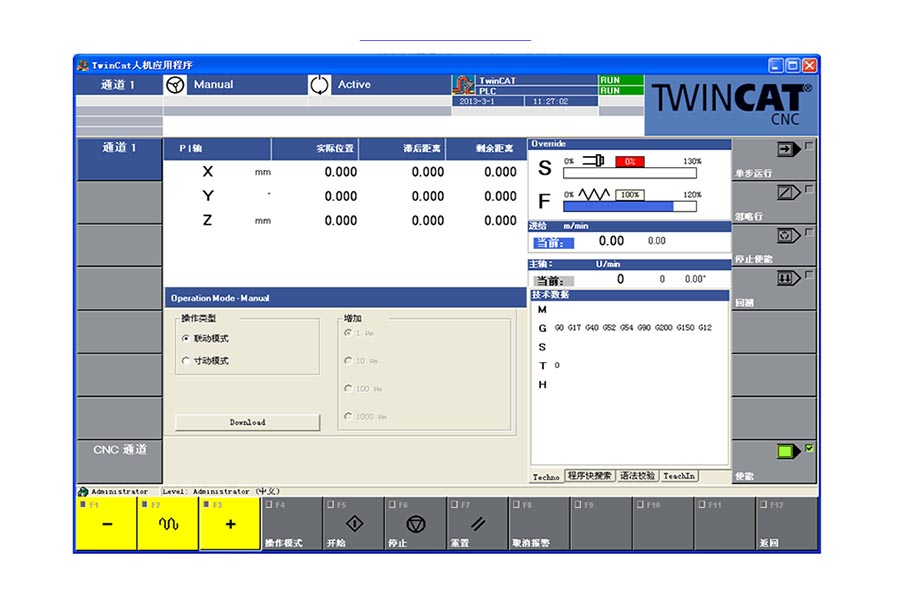

GERMANY BECKOFF SYSTEM
Germany Beckoff System

Leading CNCKad integration sheet metal CAD/CAM automatic programming expert edition nesting software, is core technology for CNC cutting machine to achieve "full time cutting, efficient cutting and high cutting rates" . It's also guaranteed to save materials effectively and improve cutting efficiency.

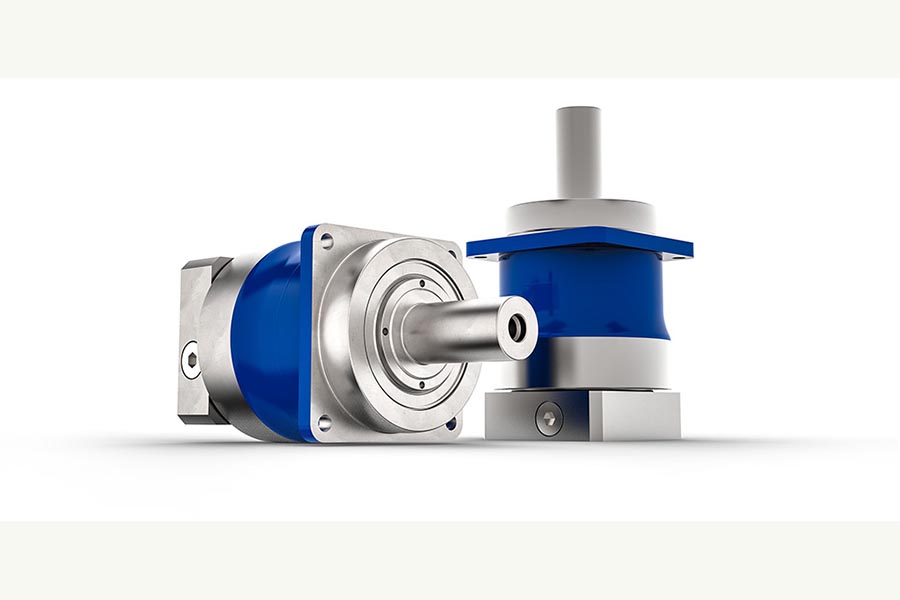

High-precision rack and pinion drives
High-precision Rack And Pinion Drives

HSG Laser adopts world-renowned Alpha Wittenstein racks and gear reducers, the same product used in Trumpf machines.

HS-G4020S

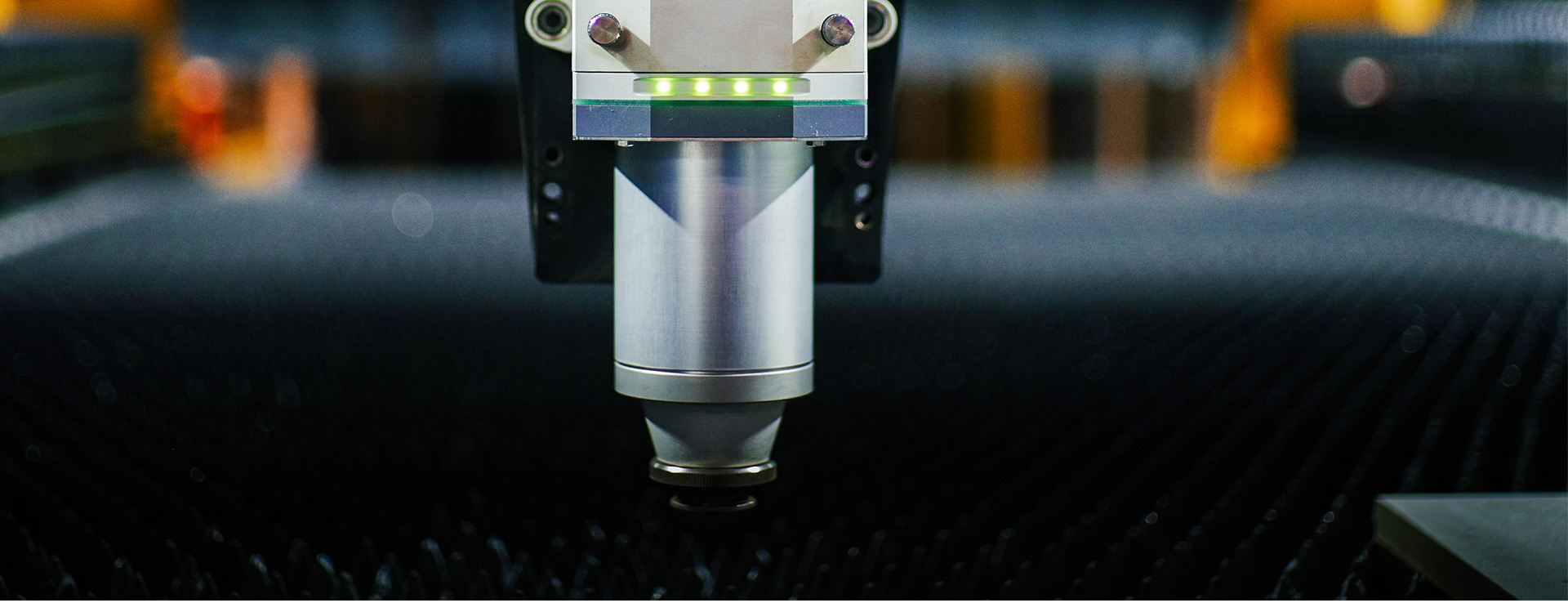

Configuration

HS-G4020S Configuration



  • ACCELERATION SPEED 2.8G
  • MAX. MOVING SPEED 196M/MIN

HS-G4020S

Video


HS-G4020S

Technical Parameters

Processing Area: 4000X2000mm (optional)
Max. moving speed: 196m/min
Max. acc. speed: 2.8G
Positioning Accuracy: ±0.05mm/m
Reposition Accuracy: ±0.05mm
Whole machine weight: 18000Kg
Machine dimensions: 11500X3500X2500mm

HS-G4020S

Samples

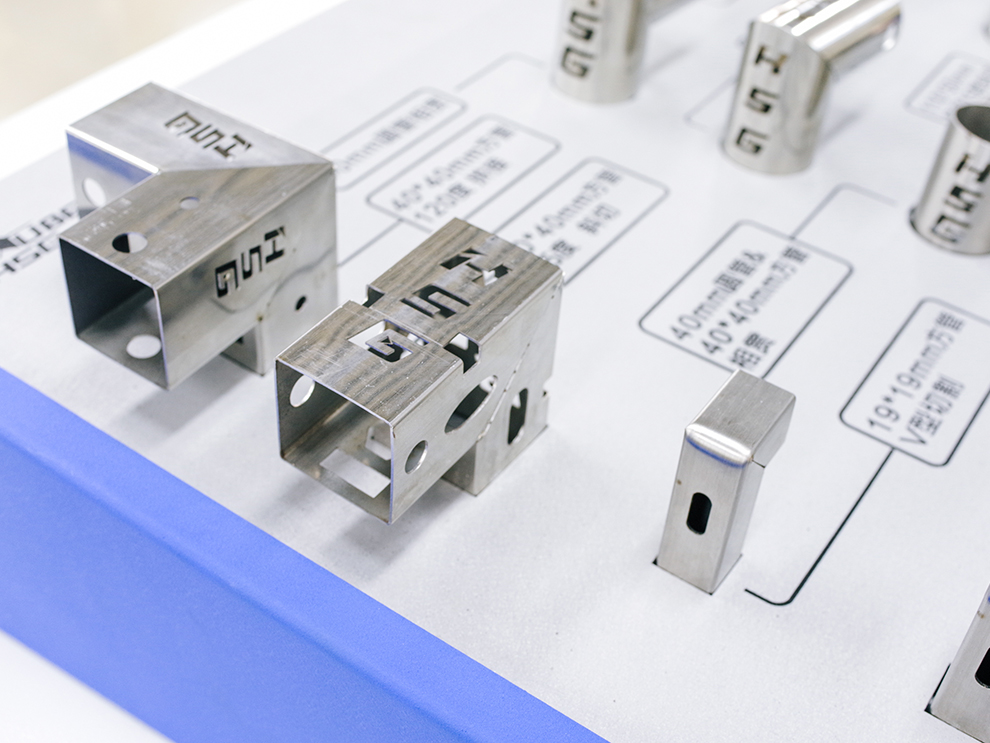

tube-cutting

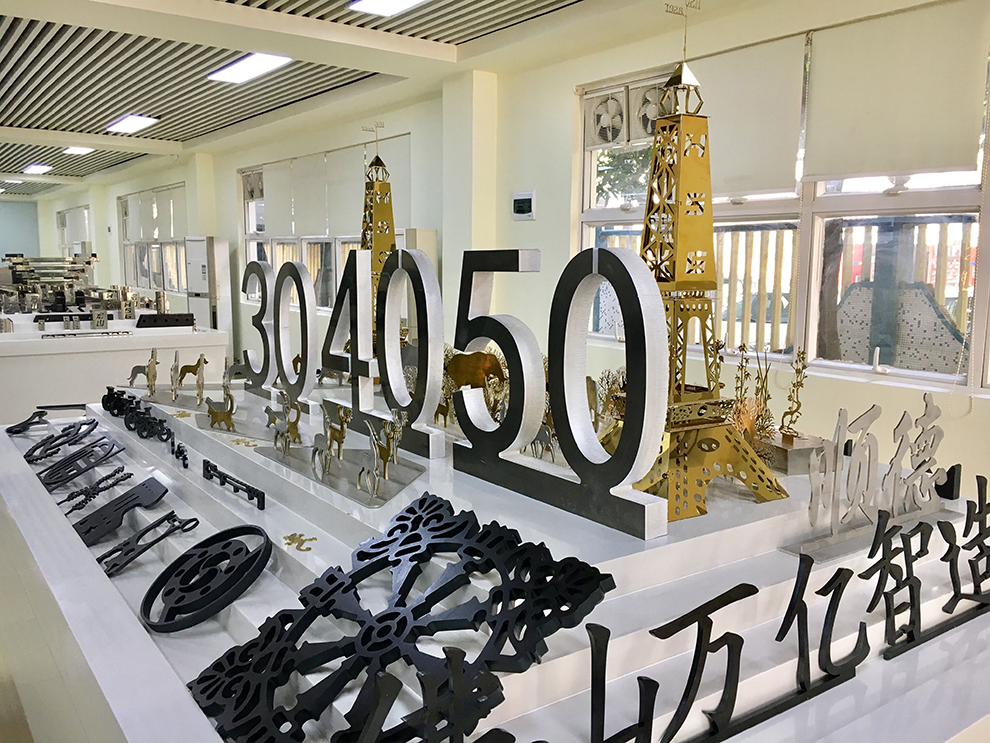

metal-cutting




metal-cutting




metal-cutting




metal-cutting




tube-cutting




tube-cutting




tube-cutting




tube-cutting




metal-cutting




metal-cutting




metal-cutting




metal-cutting




tube-cutting




metal-cutting




metal-cutting




metal-cutting




tube-cutting




tube-cutting




metal-cutting




tube-cutting




tube-cutting




tube-cutting




tube-cutting
