Cutting Metal Sheet and Tube

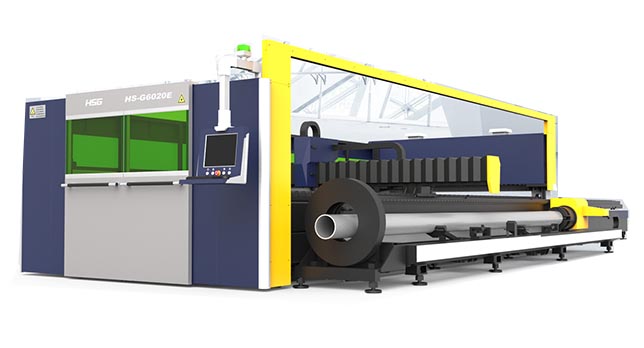

Dual-drive Pipes and Plates Fiber Laser With Protective Cover And Interchangeable Table HS-G6020E-22Q/35Q
Professionally cutting metal sheet 0.5-20mm carbon steel, 0.5-12mm stainless steel, 0.5-10mm brass, 0.5-6mm copper, square pipes, round pipes, rectangle pipes, D-shaped pipes and hexagon pipes etc. Cutting capacity - square pipes:20X20-230X230mm, round pipes diameter: 20-325mm, thickness 0.5-5mm carbon steel pipes, 0.5-3mm stainless steel pipes.
GE-Series
Features

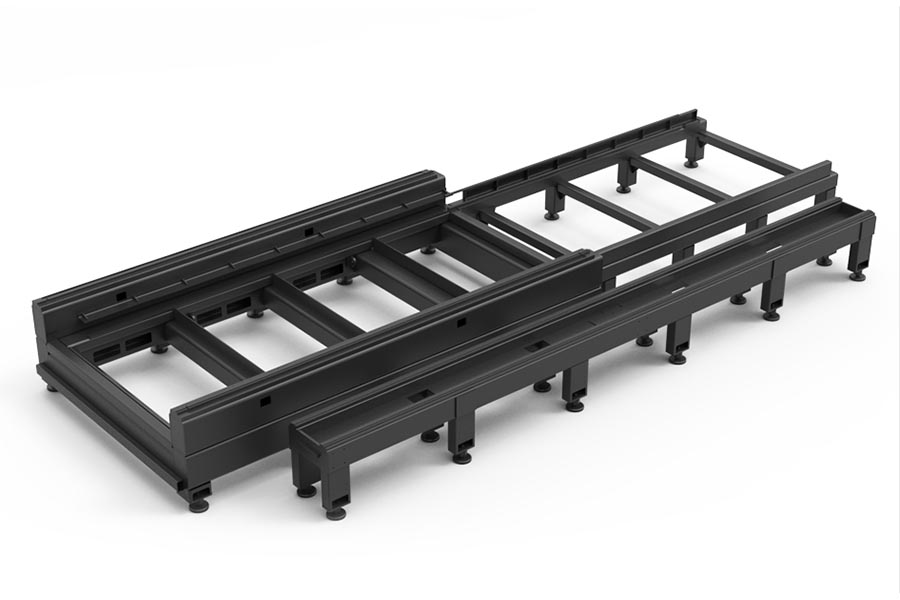

Double Table Dual-drive
Welded and stress-relieved steel frame houses the machine and pallet shuttle. Dual servo drive on the X-axis permits high acceleration and speed.

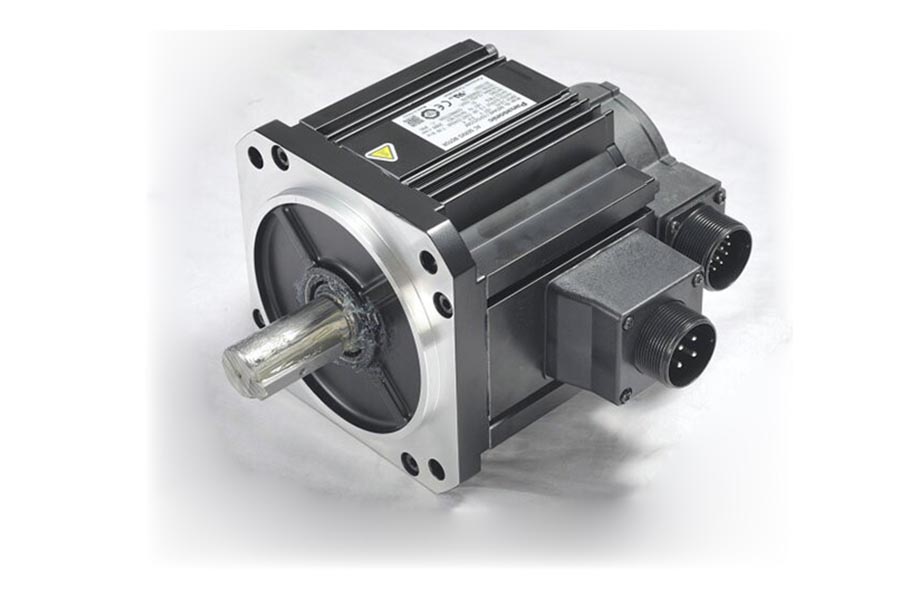

Panasonic Servo Motor

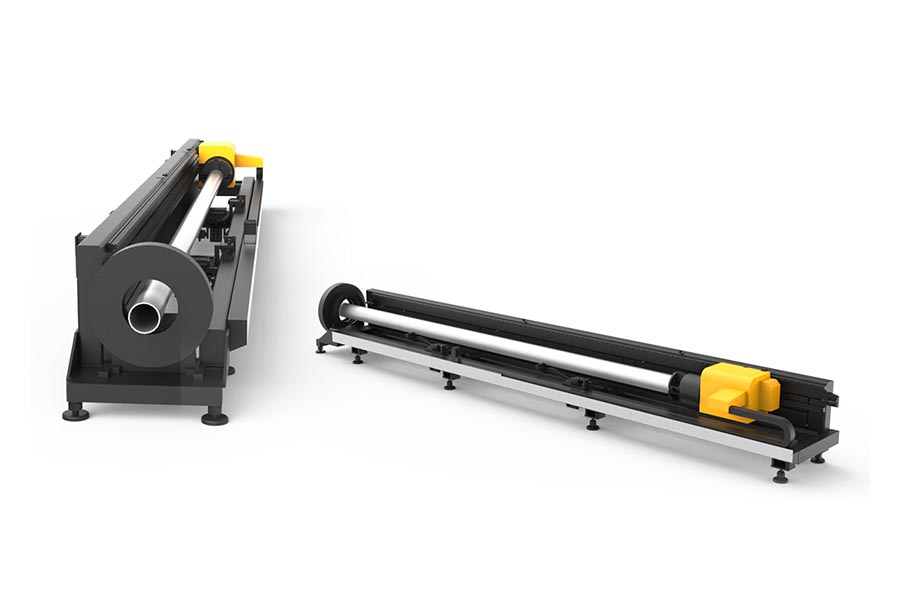

Pipe Clamping Position
Both front and rear chucks are pneumatic, just one click for automatic entering, dual-drive rotation can ensure synchronization of front and rear chucks rotation
Stability Of Cutting
Cutting workpiece at long distance by movement of Y2-axis CNC chuck, to avoid machine vibration and ensure processing accuracy
Optional Upgrade

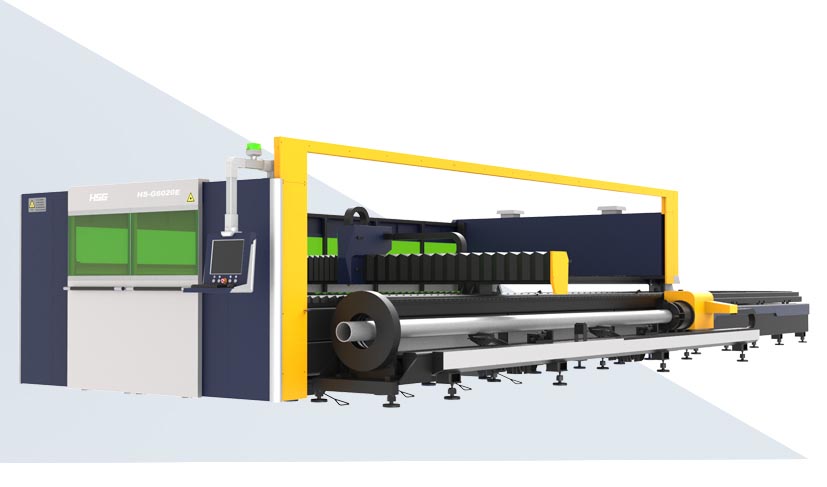

HS-G6020E-6022Q
- Plate Processing Area: 6000mmx2000mm
- Pipe Processing Length: 6000mm
- Tube Cutting Capacity:
- Round Tube: 20mm-210mm
- Square Tube: 20x20mm - 150x150mm
Optional Upgrade

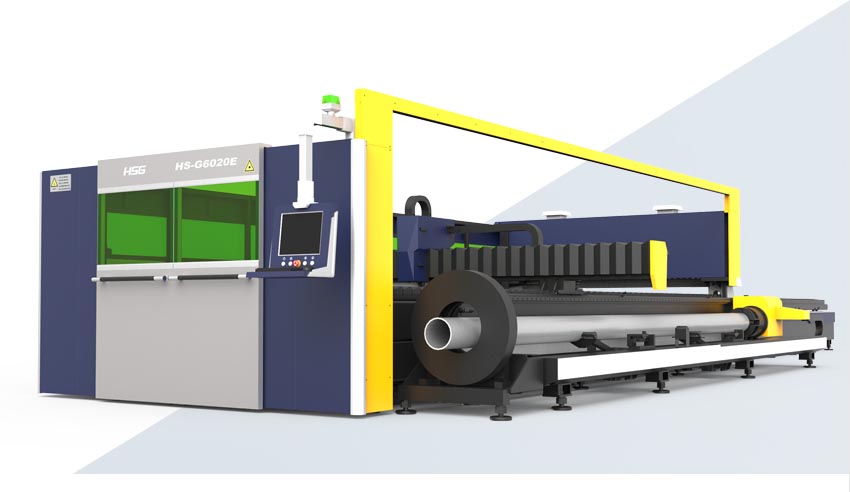

HS-G6020E-6035Q
- Plate Processing Area: 6000mmx2000mm
- Pipe Processing Length: 6000mm
- Tube Cutting Capacity:
- Round Tube: 20mm-325mm
- Square Tube: 20x20mm - 230x230mm
GE-Series
Video
GE-Series
Technical Parameters
| Processing Area: | 6000mmX2000mm |
| Laser power: | 500W-1000W |
| Max.Cutting Speed: | 60m/min |
| Max. accelerated: | 0.5G |
| X/Y Positioning Accuracy: | 0.05mm/m |
| X/Y Repeated Positioning Accuracy: | ±0.05mm |
| Power supply: | 380V 50Hz |
| Whole machine weight: | 13000Kg |
| Machine dimensions: | 8500X3800X2250mm；8100X900X1050mm |
| Transmission: | Precise pinion and rack,dual-drive transmitting |
